NV Diamond Plates
Adamas currently provides three lines of diamond plates containing nitrogen-vacancy (NV) color centers with varied NV density and location: (1) Higher N and NV concentrations distributed throughout the entire plate volume, providing high brightness. (2) Lower N and NV concentrations distributed throughout the entire plate volume, providing long coherence. (3) Surface NVs distributed throughout a ~0.6 um thick layer.
NV in Bulk
High NV Content
• HPHT type Ib
• {100}, {110} or {111} face orientation
• [NV] ≈ 2 ppm
• [N] < 100 ppm

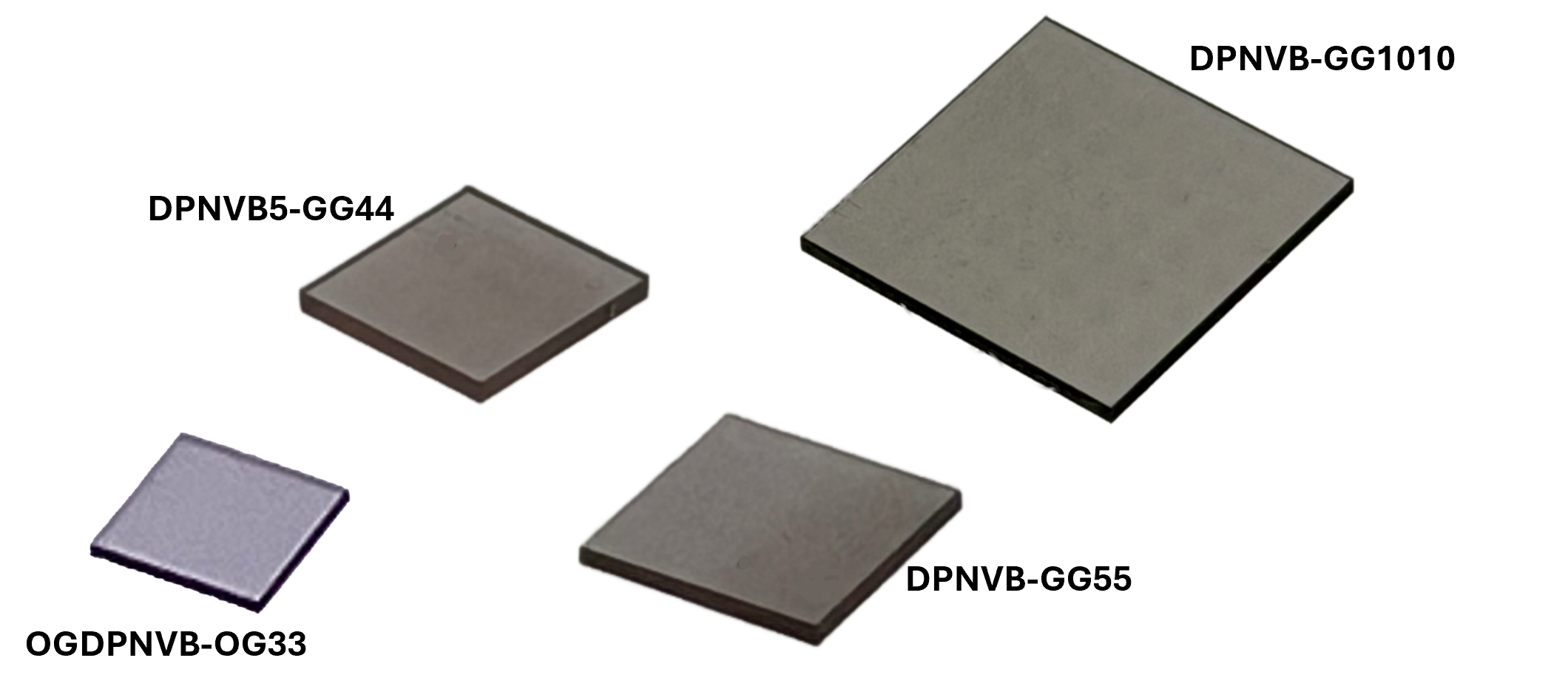

NV in Bulk
Long NV Coherence
• CVD
• {100} face orientation
• [NV] < 1 ppm
• [N] < 5 ppm
• 3x3 mm, 4x4 mm, 5x5 mm, 10×10mm
NV Layer
~0.6 um Thick
• CVD or HPHT with [N] <1 ppm
• {100} face orientation
• Laser engraved on non-implanted side
• 3x3 mm, 7x7 mm
• NV layer thickness: ~0.6 um
Plates with NV Distributed Through Entire Volume: High NV Content
Plates with NV Distributed Through Entire Volume: Long NV Coherence - REDUCED PRICES!
*General grade has higher dislocation density than optical grade
Plates with Micro-shallow NV Layers Near Surface - REDUCED PRICES!
Please contact us for more information regarding price and availability of the product.
Plates with NV Distributed Through Entire Volume: High NV Content
| Dimensions (mm) | Type | Orientation | [N], ppm | [NV], ppm | Surface Finish, Ra | SKU |
|---|---|---|---|---|---|---|
| 3 x 3 x 0.3 | HPHT, lb | <100> | <200 | ≈2 | Side 1: <30nm, Side 2: <250 nm | 1bDPNVB |
| 3.2 x 2.4 x 1.2 | HPHT, lb | <110> | <200 | ≈2 | All Sides: <500 nm | 1bDPNVB - Stone |
| 4 x 4 x 3 x 1 | HPHT, lb | <111> | <200 | ≈2 | All Sides: <500 nm | 1bDPNVB - Macle |
Plates with NV Distributed Through Entire Volume: Low NV Content
| Dimensions (mm) | Type | Orientation | [N], ppm | [NV], ppm | Typical NV T₂, μs | Surface Finish, Ra | SKU |
|---|---|---|---|---|---|---|---|
| 3 x 3 x 0.25 | CVD | <100> | <1 | <0.2 | >300 | Side 1: <30nm, Side 2 <30 nm | OGDPNVB-OG33 |
| 4 x 4 x 0.5 | CVD | <100> | ~5 | <1 | >30 | Side 1: <30nm, Side 2 <30 nm | DPNVB5-GG44 |
| 5 x 5 x 0.5 - 0.6 | CVD | <100> | <1 | <0.2 | >300 | ~Side 1: <30nm, Side 2 <30 nm | DPNVB-GG55 |
| 10 x 10 x 0.5 - 0.6 | CVD | <100> | <1 | <0.2 | >300 | ~Side 1: <30nm, Side 2 <30 nm | DPNVB-GG1010 |
NV Layer
| Dimensions (mm) | Type | Orientation | [N], ppm | Surface Finish, Ra | SKU |
|---|---|---|---|---|---|
| 3 x 3 x 0.25 | CVD | <100> | <1 ppm | Side 1: <30nm, Side 2: <30 nm | DPNVMS - OG33 |
| 7 x 7 x 0.5 | HPHT | <100> | <0.1 ppm | ~Side 1: ~5nm, Side 2: ~5 nm | DPNVMS - HPHT77 |
By purchasing this material, recipient agrees that the Material is to be used solely for testing purpose, and the Material will not be used in human subjects, in clinical trials, or for diagnostic purposes involving human subjects without the written consent of the Provider.
