Functionalized Green Fluorescent Nanodiamonds
Fluorescent nanodiamonds are a chemically robust, infinitely photostable, and biocompatible fluorophore with a range of functional surface chemistries. Relevant applications include fiducial marking, super-resolution microscopy, multiphoton microscopy, time-gated microscopy, and correlative microscopy.
Our selection of nanodiamonds containing NVN centers with green fluorescence include particles produced from natural diamond and from diamond of synthetic origin of type Ib using a patented process of rapid thermal annealing for the later. Fluorescent nanodiamonds of synthetic origin have higher brightness than particles produced from natural diamond.
Design your own downstream reaction schemes, or contact us for specific custom functionalities.

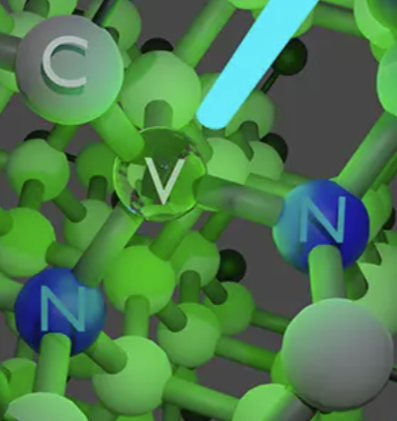

Figure 1. An H3 center consists of two Nitrogen atoms surrounding a Vacancy (absent carbon atom) and emits green light under blue excitation

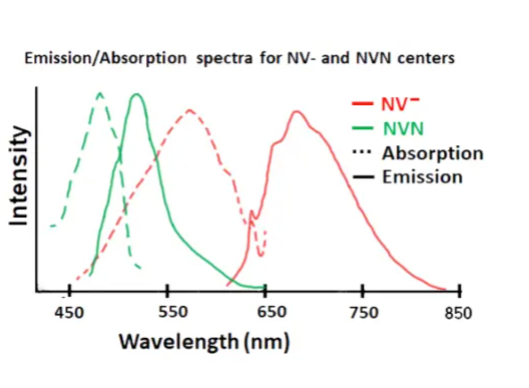

Figure 2. General emission and excitation spectra for NV- and NVN centers in diamond.
Product Characteristics
| Fluorescence Color | Peak Excitation | Peak Emission | Multiphoton Excitation | Quantum Yield | Fluorescent Lifetime | Brightness (1 dye molecule vs. single 120 nm particle) |
|---|---|---|---|---|---|---|
| Green (NVN) | 480 nm | 520 nm | 750 nm | - | 20 ns | ~90x vs FITC |
